DISCOVER EXPERT MAGICIAN ROBOT

The Magician is the world's first desktop grade 4-axis robot. It can perform a wide range of tasks such as 3D printing, laser graving, calligraphy and drawing. 13 interface ports are available to support secondary developement, lab projects and robotics curricula.

Studies such as robotic systems, the DH convention, control of robot movement and robot programming can be taught to different levels of students. A variety of application scenarios can be developed through the use of programming software and hardware accessories.

Features

Sturdy and lightweight

Easy to control and user-friendly

Multifunctional and easily programmable

Cost-effective and accurate

Operable by

One Person

The Magician is designed for students and consumers in mind. It is extremely portable and capable of various automation tasks. Users can interact with the Magician using quick access command buttons or wirelessly with portable computing devices.

Teach Robot

Physically

The Magician is capable of drag-to-teach. Simply by moving the robotic arm through desired paths to program it. It's that simple.

High Expandability with

Secondary Development

The Magician has 13 interface ports and wireless connectivity for secondary development. Controller support is available for beginners.

Wide Selection of

Accessories

A wide variety of accessories such as grippers, rails, conveyor belts, mobility and vision modules are available to allow the Magician to complete different tasks.

PRODUCTS DESCRIPTION

Specifications
Number of Axis	4
Payload	500 g
Max. Reach	320 mm
Repeatability	±0.2 mm
Communication	USB / Wi-Fi* / Bluetooth*
Power Supply	100V - 240V, 50/60 HZ
Power In	12V / 6.5A DC
Consumption	78W Max
Working Temperature	-10° - 60° C

Axis Movement
Axis	Range	Max Speed (250 g workload)
Joint 1 base	-120° ~+120°	320° / s
Joint 2 rear arm	-5°~+90°	320° / s
Joint 3 forearm	-15°~+90°	320° / s
Joint 4 rotation servo	-140°~+140°	480° / s

Physical
Net Weight	3.4 KG
Gross weight ( Standard Version)	7.2 KG
Gross weight ( Education Version)	8.0 KG
Base Dimension(Footprint)	158 mm X 158 mm
Materials	Aluminum Alloy 6061, ABS Engineering Plastic
Controller	Dobot Integrated Controller
Robot Mounting	Desktop
Packing Size (L X W X H)	421 mm x 334 mm x 352 mm

Applications
Software	DobotLab, DobotStudio, Repetier Host, GrblController3.6, DobotBlockly (Visual Programing editor)
SDK ( Software Develop Kit )	Communication Protocol, Dobot Program Library
Extensible I/O Interfaces	1. I/O X 10 (Configurable as Analog Input or PWM Output)
	2. Controllable 12V Power output X 4
	3. Communication Interface (UART, Reset, Stop, 12V, 5V and two I/O included)
	4. Stepper X 2

Endeffectors
3D Printer Kit	Maximum Print Size (L X W X H)	150 mm X 150 mm X 150 mm
	3D printing material	PLA
	Resolution	0.1 mm
Laser *	Power Consumption	500 mw
	Type	405 nm ( Blue laser )
	Power	12V , TTL trigger ( With PWM Driver )
Pen Holder	Pen Diameter	10 mm
Vacuum Suction Cup	Suction Cup Diameter	20 mm
Vacuum Suction Cup	Pressure	-35 Kpa
Gripper	Range	27.5 mm
	Drive Type	Pneumatic
	Force	8 N
Iterms marked with are optional kits, not inclueded in default package.

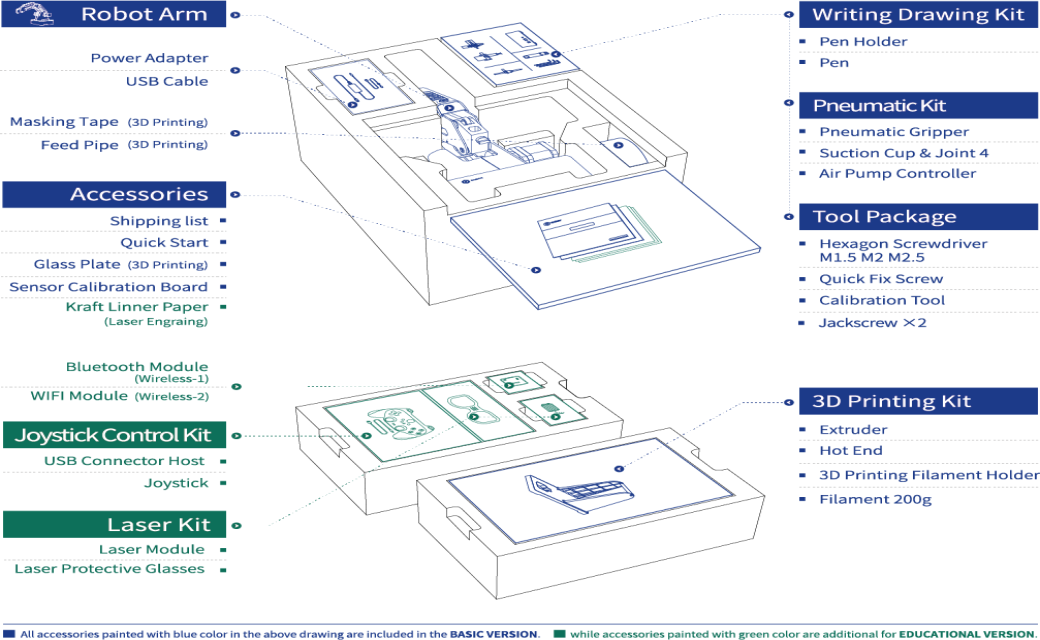

Plan & Shipping List
