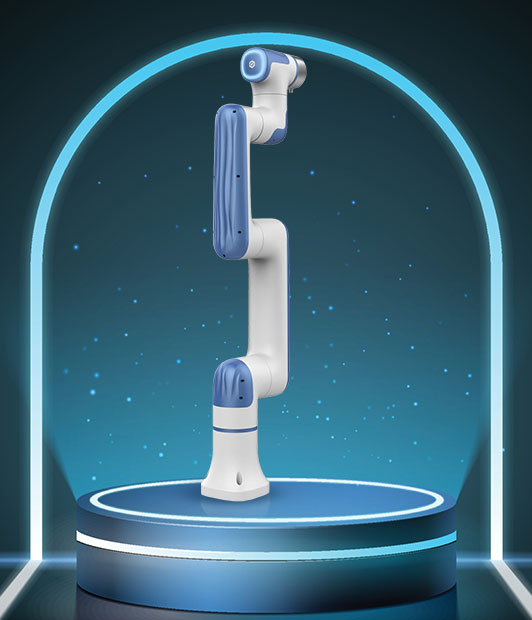

DISCOVER EXPERT NOVA SERIES ROBOT

The DOBOT Nova Series comes with 2 kg and 5 kg maximum payload options. Nova cobots are ultralight and easy to use. Multiple built-in safety features ensure versatility across various commercial applications, including beverage, restaurants, physiotherapy and more. Customizable outer shell colors allow for coherent styling in stores.

Features

Highly Portable. Requires Only 1 m² of Space.

Easy to Use. No Experience Required.

Safety Enhanced. Protection Ensured.

Customize Nova to Work Seamlessly with You.

Highly Portable.

Requires Only 1 m² of Space.

The Nova Series has maximum reach of 625-850 mm. They are 33%-44% lighter and 20% smaller than CR counterparts. Palm-sized control box makes rapid deployment possible without the need to alter store layout.

Easy to Use.

No Experience Required.

Industry leading programming methods such as replaying user guided trajectory and graphical user interface require no coding knowledge. Users in the retail and hospitality industries can easily incorporate Nova cobots into standardized workflow upon completion of training course. Effortlessly monitor cobot activities and manage software upgrades over the cloud.

Safety Enhanced.

Protection Ensured.

Nova cobots are equipped with intelligent sensors with 5 adjustable protection levels. Operation stops in 0.01 second upon collision detection to secure the safety of people. Additional safety features such as human motion sensing and posture freeze upon power shutoff offer much desired human-robot collaboration in the commercial sector.

Customize Nova to Work

Seamlessly with You.

The Nova series offers exterior customization options. Mix and match color combinations that work with your brand.

PRODUCTS DESCRIPTION

Nova 5
Weight		14 kg (30.9 lbs)
Maximum Payload		5 kg (11 lbs)
Working Radius		850 mm (33.5 in)
Maximum Speed of TCP		2 m/s (78.7 in/s)
Repeatability		±0.05 mm
Range of Motion	J1	± 360°
	J2	± 180°
	J3	± 160°
	J4	± 360°
	J5	± 360°
	J6	± 360°
Maximum Joint Speed	J1/J2/J3	100 ° /s
Maximum Joint Speed	J4/J5/J6	100 ° /s
End I/O	DI/DO	2 inputs
End I/O	RS485	Supported
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0° to 50° C
Installation Orientation		Any angle
Power Consumption	Typical	230W
Power Consumption	Maximum	770W
Cable Length from Robot to Controller		3 m (118.1 in)
Materials		Aluminum alloy, acrylonitrile butadiene Styrene plastic
