DISCOVER G1 ROBOT

The G1 is a high-performance humanoid robot built for research, development, and advanced robotics education. Featuring up to 43 degrees of freedom, real-time motion control, and support for AI integration, it delivers impressive agility and versatility. With powerful joints, 3D vision, and optional dexterous hands, G1 is ideal for dynamic locomotion, manipulation, and interactive applications in controlled environments.

Features

Up to 43 Degrees of Freedom for flexibility

High-torque joints enable dynamic motion

Supports AI, RL, and imitation learning

Optional dexterous robotic hands

Real-time control with hybrid actuators

3D vision via depth camera and LiDAR

Compact, foldable, and portable design

Ideal for research and robot development

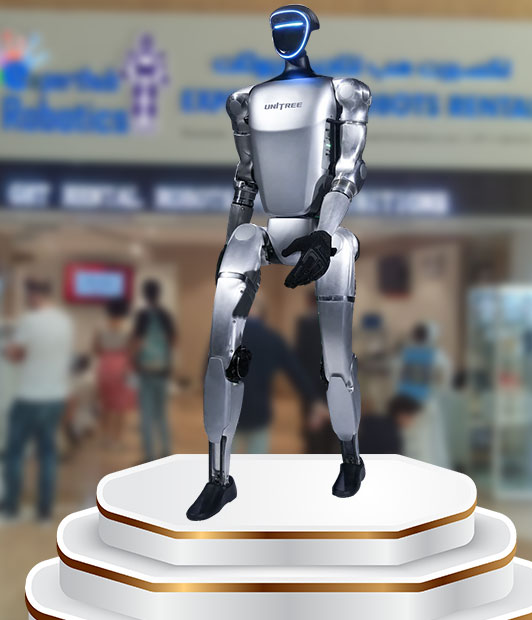

G1 ROBOT

G1 SPECIFICATION

G1 SPECIFICATION

PRODUCTS DESCRIPTION

Mechanical Dimensions
Height, Width, and Thickness (Stand) 1320x450x200mm
Height, Width, and Thickness (Fold) 690x450x300mm
Weight (With Battery) About 35 kg
Total Degrees of Freedom (Joint Freedom) 23
Single Leg Degrees of Freedom 6
Waist Degrees of Freedom 1
Single Arm Degrees of Freedom 5
Joint Output Bearing Industrial grade crossed roller bearings (high precision, high load capacity)
Joint Motor Low inertia high-speed internal rotor PMSM (Permanent Magnet Synchronous Motor)
Maximum Torque of Knee Joint 90 N.m
Arm Maximum Load About 2K
Calf + Thigh Length 0.6M
Arm Span About 0.45M
Extra Large Joint Movement Space Waist joint: Z ±155°
Knee joint: 0~165°
Hip joint: P ±154°, R -30~+170°, Y ±158°
Electrical Characteristics
Full Joint Hollow Electrical Routing YES
Joint Encoder Dual encoder
Cooling System Local air cooling
Power Supply 13 string lithium battery
Basic Computing Power 8-core high-performance CPU
Sensing Sensor Depth Camera+3D LiDAR
4 Microphone Array YES
5W Speaker YES
Accessories
WiFi 6, Bluetooth 5.2 YES
Smart Battery (Quick Release) 9000mAh
Charger 54V 5A
Manual Controller YES
Other
Battery Life About 2h
Upgraded Intelligent OTA YES

Flexibility beyond ordinary people

Extra large joint movement angle space, 23~43 joint motors

Imitation & reinforcement learning driven

Robotics technology accelerated by AI is upgrading and evolving every day

Force control dexterous hand, manipulation of all things

Combined with force-position hybrid control, it is sensitive and reliable, and can simulate human hands to achieve precise operation of objects.

Robot world model, let's create it together

UnifoLM (Unified Robot Large Model), create a new era of intelligence together
